Product Details:
|
| HEAD CONFIGURATION: | Pressure Only | STROKE: | .56 Inches |
|---|---|---|---|
| PRESSURE: | Flow @ 12V DC |

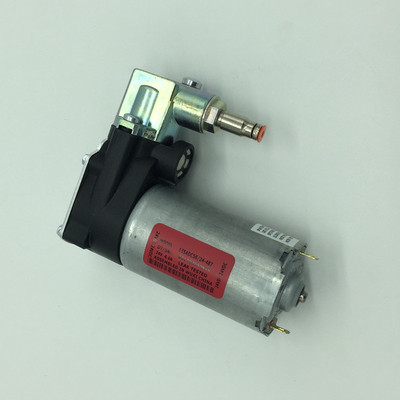

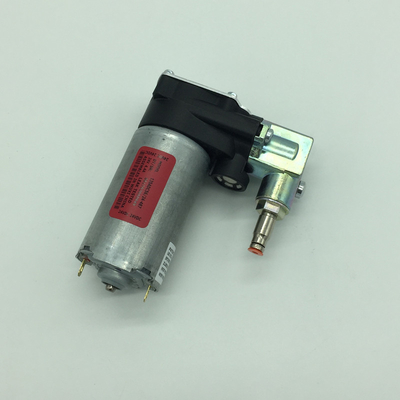

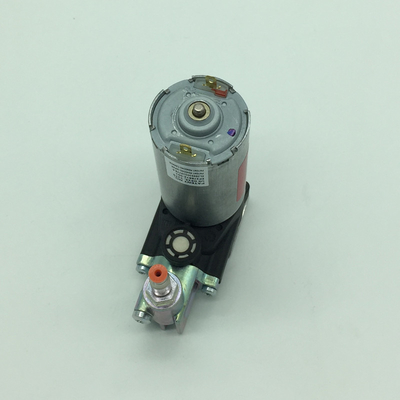

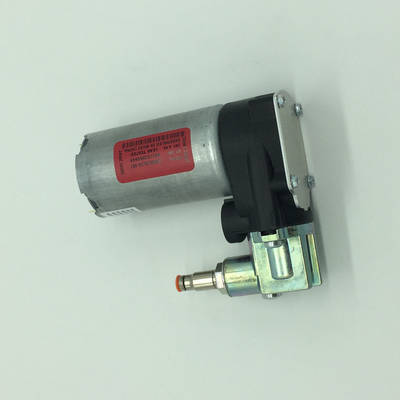

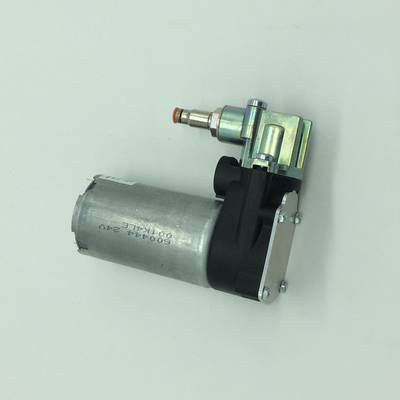

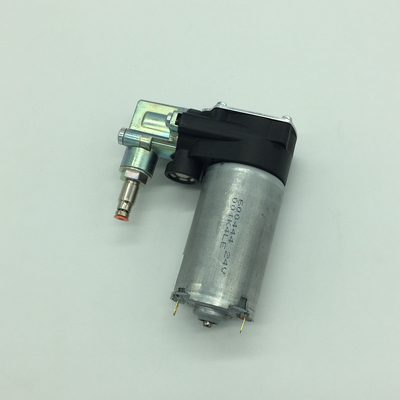

135ADC56/12 metal silver AIR SEAT COMPRESSOR PUMP for the truck seat
Xian Huihong Vehicle Parts Company Limited is specializing in the production of vehicle accessories ,like seat recliners, rotating mechanism, seat slider and etc ,which was founded in 2011 and made great achievements on it.
We have researched and designed products independently for many years. So far, our company has cooperated with many companies of motor homes at home and abroad for long time, receiving good comments from the world customers. Owing to high quality and A good service , We are ready for any time to respond the customers' needs and keep loyal to our partners.
Now the products are mainly exported to North America, South America, Europe, Australian, New Zealand, South Africa etc. over 10countries.
Our team keep on improving and will never stop.Warmly We are looking forward to cooperating with customers both at home and abroad based on mutual benefits. establish a long term and prosperous relationship with you.
Warmly welcome the customers to contact us for detailed informationair spring for the truck seat air suspension rubber bag for truck seat base parts
| MODEL NUMBER | 135ADC56/12 | 135ADC56/24 | |||
| HEAD CONFIGURATION | Pressure Only | Pressure Only | |||
| STROKE | .56 inches | 0.56 inches | |||
| PRESSURE | Flow @ 12V DC | Flow@24VDC | |||
| cfm @ psi | lpm @ bar | ||||
| psi | bar | cfm | lpm | cfm | lpm |
| 0 | 0 | 0.54 | 15.3 | 0.54 | 15.3 |
| 10 | 0.5 | 0.48 | 14.2 | 0.48 | 14.2 |
| 20 | 1 | 0.42 | 12.7 | 0.42 | 12.7 |
| 30 | 1.5 | 0.38 | 11.6 | 0.38 | 11.6 |
| 40 | 2 | 0.33 | 10.6 | 0.33 | 10.6 |
| 50 | 3 | 0.3 | 9.1 | 0.3 | 9.1 |
| 60 | 5 | 0.27 | 6.8 | 0.27 | 6.8 |
| 70 | 7 | 0.24 | 4.8 | 0.24 | 4.8 |
| 80 | 0.22 | 0.22 | |||
| 90 | 0.19 | 0.19 | |||
| 100 | 0.17 | 0.17 | |||
| MAX. CONTINUOUS PRESSURE | - | - | - | - | |
| MAX. INTERMITTENT PRESSURE | 87 psi | 6.0 bar | 87 psi | 6 bar | |
| MAX. DUTY CYCLE (MINUTES ON/OFF AT 23°C) | 1 min. on / 20 min. off | 1min.on/20min.off | |||
| MAX. AMBIENT AIR TEMP. | +149°F | +65˚C | +149°F | +65˚C | |
| MIN. AMBIENT START TEMP. | -22°F | -30˚C | -22°F | -30˚C | |
| MAX. RESTART PRESSURE | 100psi | 8.3bar | 120 psi | 8.3 ar | |
| MOTOR VOLTAGE | 12V DC | 24V DC | |||
| MOTOR TYPE | Permanent Magnet | Permanent Magnet | |||
| CURRENT AT RATED LOAD (AMPS) | 7.9 | 3.8 | |||
| POWER AT RATED LOAD (WATTS) | 95 | 92 | |||
| IN-RUSH CURRENT (LOCKED ROTOR, AMPS) | 29 | 17 | |||
| CAPACITOR VALUE | - | - | |||
| MIN. FULL LOAD SPEED (RPM) | 3915 | 4480 | |||
| THERMAL PROTECTOR | - | - | |||
| NET WEIGHT | 1.16 lb | .53 kg | 1.16 lb | 0.53 g | |
