RV Car Seat Rotating forward and backward mechanism seat swivel 360 degree auto seat rotary swivel plate base with slide rail

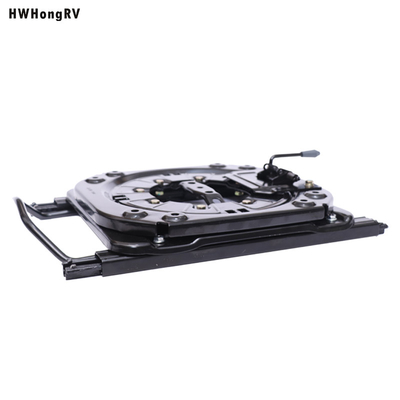

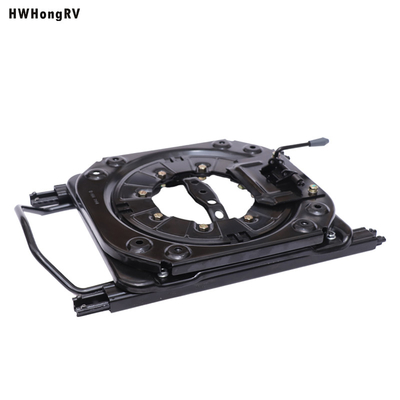

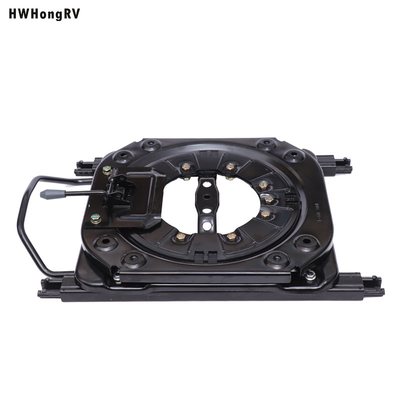

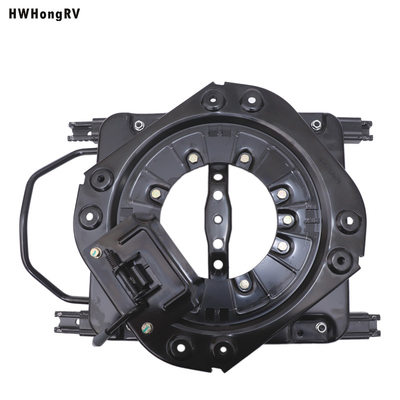

Large Image : RV Car Seat Rotating forward and backward mechanism seat swivel 360 degree auto seat rotary swivel plate base with slide rail

Product Details:

Place of Origin:	Shanxi, China
Brand Name:	HWHongRV
Model Number:	HS-SL505

Payment & Shipping Terms:

Minimum Order Quantity:	2 sets
Price:	$85.00/sets 2-18 sets
Packaging Details:	carton

Contact Now

RV Car Seat Rotating forward and backward mechanism seat swivel 360 degree auto seat rotary swivel plate base with slide rail

Description

Model:	OTHER	Year:	OTHER
Type:	General Seat	Material:	Steel
Car Fitment:	OTHER	Size:	39036040mm
Color:	Black	Product Category:	Rotating Mechanism With Slider
Rotation Range:	0~360degree	Adjust Angle Range:	90degree
Outer Slide Rail Length:	505mm	Application:	Van Campervan Caravan Motorhome
Function:	Slide And Rotation Function	Products:	Auto Car Seat Rotating Before After Mechanism Seat Swivel 360 Degree
Keywords:	Universal Seat Rotary Swivel Plate Base With Slide Rail	Design Style:	Luxury

RV Car Seat Rotating forward and backward mechanism seat swivel 360 degree auto seat rotary swivel plate base with slide rail

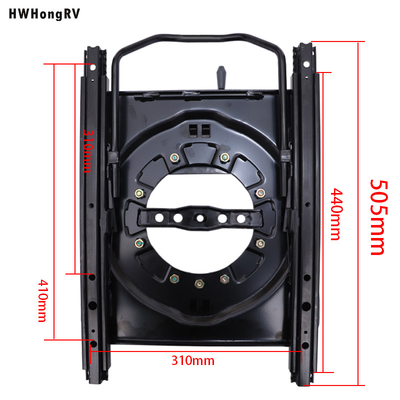

Specification

product name	505 turntable slide
Product number	HS-SL505
product material	steel
Product Size	550mm360mm105mm
color	black
locking method	double lock
Sliding shell size	505mm
Sliding core size	450mm
forward stroke	180mm
backward stroke	110mm
tooth pitch	4mm
Package Size	56cm36.5cm11cm
Net weight/gross weight	10.3kg/12kg
Application scenarios	RV, truck

Advantage:

* The little slide make the seat can go front and after
* The rotating mechanism can change the seat orientation
* The slider and swivel has the respectively operation lever

How to install van seat rails to the swivel

It need two main parts of the car seat swivel and double lock rails. Here we come to connect the slider to the swivel.

First,we would better We'd better break the handle wider, That will make the handle clip stronger. Then put the rails with
adjustable bar in the middle on the swivel. And then connect them with screw before installation, the next We have to find the
connect holes on the rails, Please note it , The sliding shell is on top, and the Sliding core faces the turntable, and then
remove the slider shell to other end ,you will see the connecting holes, you can use an electric screwdriver, and by the same way,
you connect the swivel with other end of the slider.
Now , the turntable and slide are combined into one mechanism with multifunction .

Product Description

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in cartons. we can also pack it as your requirement.
Q2. What is your terms of delivery?
A: EXW,FOB or CIF according to the different conditon.
Q3. How about your delivery time?
A: Generally, it will take 1 to 50 days after receiving your payment, we always has goods in rich stock,but specific delivery time
depends on the items and the quantity of your order.
Q4. What is your terms of payment?
A: As for the big amount,T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q6.what is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
